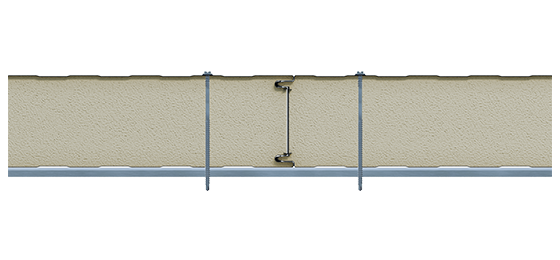

Assan Panel UK CS product can be used in cold rooms thanks to its special paint used on its surface, which provides complete protection against bacteria. It provides a strong joint with its double-sided tongue and groove cross-section, offering an advantage in thermal insulation. It can be applied to both facade and ceiling cladding of cold storage facilities.
1100 CS - UK COLD STORE PANEL
- Provides ideal thermal insulation with thinner panels compared to alternative insulation materials.
- Fast and problem-free assembly saves time and labor.
- The colorful surface eliminates the need for additional coatings like plaster and paint.
- Color options available in the RAL catalogue.
- Surface paint options available according to application (Polyester, PVDF, Plastisol, PVC).
Product Information
Production Plant
UK
Favourable Width
1100 mm
Minimum Length
2 meters
Maksimum boy
Depends on Transport Conditions
Density (EN 1602)
PIR: 40 (±2) kg/m³ – SmartCore: 41 (±2) kg/m³
Thickness
80–100–120–150–200 mm
Thermal Conductivity (EN 13165)
PIR: 0.022–0.024 W/mK & SmartCore: 0.018–0.019 W/mK
