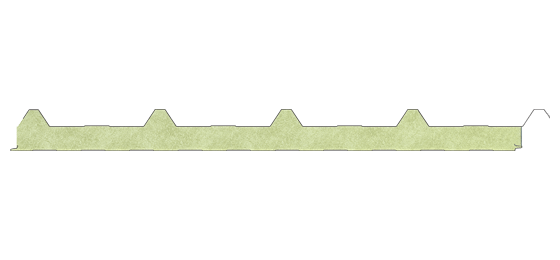

It is a five-indented lateral connected sandwich panel. Its biggest advantage is that it enables fast assembly thanks to lateral connected panel connection. This product enables wide gaps to be passed safely with its indented form.
N5 ROOF PANEL
- The highest level of thermal insulation.
- Easy and problem-free assembly saves both time and labor.
- 5-pitch lateral connected sandwich panel. Applicable to roofs with a 10% gradient.

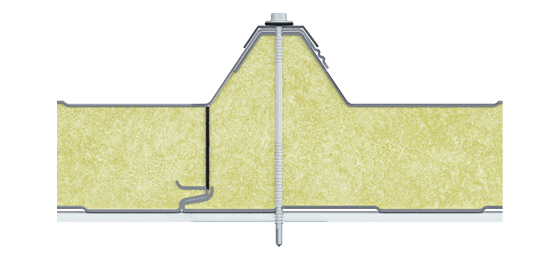

- The primary advantage is that it allows for fast assembly thanks to lateral connected panel joint.

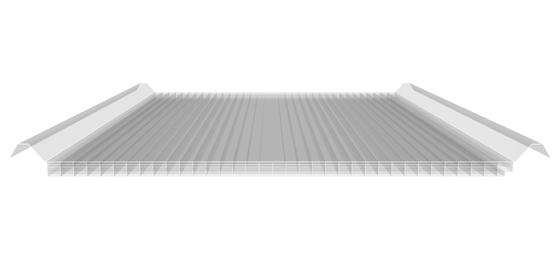

- Fully compatible with P980 Polycarbonate roof lights. This compatibility ensures easy and fast installation.
Product Information
Production Plant
İstanbul-İskenderun-Balıkesir
Favourable Width
1000 mm
Minimum Length
3 meters
Maximum Length
Depends on Transport Conditions
Density (EN 1602)
SmartCore&PIR Elite: 41(±2) kg/m3 – PIR: 40(±2) kg/m3
Thickness
30-40-50-60-80-100-120-150 mm
Thermal Conductivity (EN 13165)
SmartCore: 0,019 W/m K – PIR&PIR Elite: 0,022-0,024 W/m K
Dimensional Stability (EN 13165)
Level DS (TH) 11
Reaction to Fire (EN 13501)
PIR Elite: B-s1,d0 – PIR: B-s2,d0
Water Absorption (EN ISO 354)
By Volume %2 (168 hours)
Closed Cell Percentage (EN 14509)
%95
Vapour Diffusion Resistance (EN 12086)
30-100
Heat Resistance
-200 /+110 ºC
