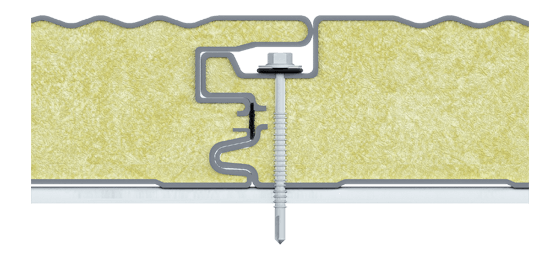

The wall panels are suitable for use on walls due to the system that conceals joint elements. The ability to use them both laterally and vertically provides assembly flexibility and good solutions for designers. Generally produced in micro pressed form to achieve an aesthetic appearance for walls.

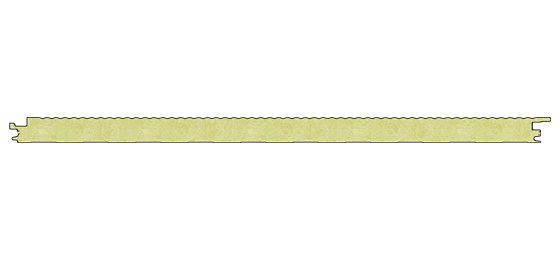

W MICRO WALL PANEL
- High performance insulation material.
- Wall panels are suitable for use on walls due to the system that conceals joint elements.
- Horizontal and vertical application allows for flexibility in assembly and aesthetic solutions for designers.
- Vertical or angled corrugated sheet based on profile type as well as prefabricated corner panels and a wide variety of capped profiles are available.
- It is not harmful for the environment as n-Pentane gas is used for blowing polyurethane material.
- Color surface eliminates the need for any additional coating such as primer, finish, etc. and color options are available in RAL catalogue.
- Finishing (Polyester, PvdF, Plastisol, PVC) options are available for application site.
Product Information
Production Plant
İstanbul-İskenderun
Favourable Width
1000 mm
Minimum Length
3 meters
Maximum Length
Depends on Transport Conditions
Density (EN 1602)
SmartCore&PIR Elite: 41(±2) kg/m3 – PIR: 40(±2) kg/m3
Thickness
50-60-70-80-100-120-150 mm
Thermal Conductivity (EN 13165)
SmartCore: 0,019 W/m K – PIR&PIR Elite: 0,022-0,024 W/m K
Dimensional Stability (EN 13165)
Level DS (TH) 11
Reaction to Fire (EN 13501)
PIR Elite: B-s1,d0 – PIR: B-s2,d0
Water Absorption (EN ISO 354)
By Volume %2 (168 hours)
Closed Cell Percentage (EN 14509)
%95
Vapour Diffusion Resistance (EN 12086)
30-100
Heat Resistance
-200 /+110 ºC
