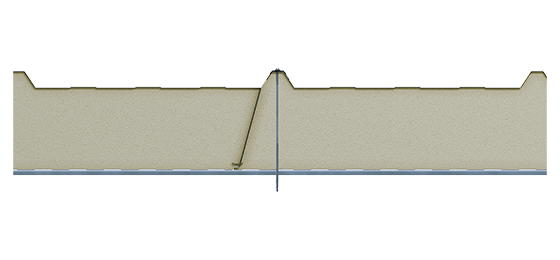

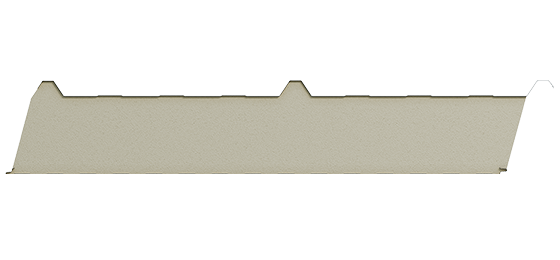

It has 3 ribs which is lateral connected sandwich panel. Its biggest advantage is that it enables fast assembly thanks to lateral connected panel connection. This product enables wide gaps to be passed safely with its indented form. It has a joint detail with angle.
N3 - UK ROOF AND WALL PANEL
- It has a joint detail with angle.
- Fast and trouble-free installation saves both time and labor.
- It has high performance in sound insulation as well as heat insulation.
- Thanks to its colorful surface, there is no need for additional coatings such as plaster or paint.
- There are surface paint (Polyester, PvdF, Plastisol, PVC) options suitable for the place of use.
- Color selection can be made from the RAL catalogue.
- It does not deteriorate, rot or mold over time.
Product Information
Production Plant
UK
Favourable Width
1000 mm
Minimum Length
3 Meters
Maximum Length
Depends on Transport Conditions
Density (EN 1602)
SmartCore: 41(±2) kg/m3 – PIR: 40(±2) kg/m3
Thickness
40-50-60-80-100-140-160
Thermal Conductivity (EN 13165)
SmartCore: 0,018–0,019 W/m·K
Dimensional Stability (EN 13165)
Level DS (TH) 11
Reaction to Fire (EN 13501)
SmartCore: B-s2,d0 – PIR: B-s2,d0
Water Absorption (EN ISO 354)
By Volume %2 (168 hours)
Closed Cell Percentage (EN 14509)
95%
Vapour Diffusion Resistance (EN 12086)
30-100
Heat Resistance
-200 /+110 ºC
