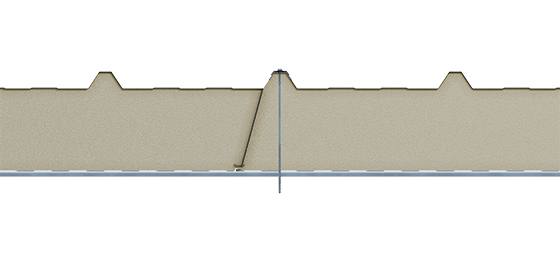

It is a four-indented lateral connected sandwich panel. The greatest advantage of the flanged panel is that it is protected from external factors thanks to a flange profile covering the connection elements at the joints, preventing water leakage problems over time, both at the panel joints and in the connection elements.

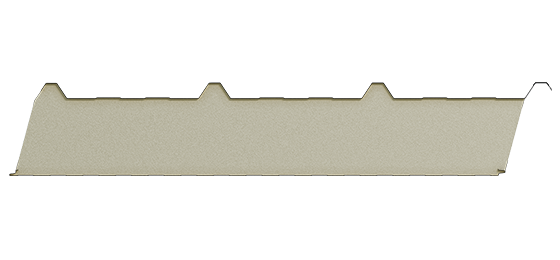

N4 - UK ROOF AND WALL PANEL
- It has the best thermal insulation values.
- Quick and hassle-free installation saves both time and labour costs.
- The cap profiles can be made in different colours as desired, providing a visual advantage.
- Surface paint options (Polyester, PvdF, Plastisol, PVC) are available to suit the location of use.
- It is fully compatible with P965 Polycarbonate. This compatibility allows for easy and quick installation.
- The cap profile can also be used as a wall panel as it conceals the connection elements.
Product Information
Production Plant
UK
Favourable Width
1000 mm
Minimum Length
3 Meters
Maximum Length
Depends on Transport Conditions
Density (EN 1602)
SmartCore: 41(±2) kg/m3 – PIR: 40(±2) kg/m3
Thickness
40-50-60-80-100-140-160
Thermal Conductivity (EN 13165)
SmartCore: 0,018-0,019 W/m K
Dimensional Stability (EN 13165)
Level DS (TH) 11
Reaction to Fire (EN 13501)
SmartCore: B-s2,d0 – PIR: B-s2,d0
Water Absorption (EN ISO 354)
By Volume %2 (168 hours)
Closed Cell Percentage (EN 14509)
95%
Vapour Diffusion Resistance (EN 12086)
30-100
Heat Resistance
-200 /+110 ºC
