The wall panels are suitable for use on walls due to the system that conceals joint elements. The ability to use them both laterally and vertically provides assembly flexibility and good solutions for designers. It provides an aesthetically pleasing appearance on the facade with its sinusoidal shape.

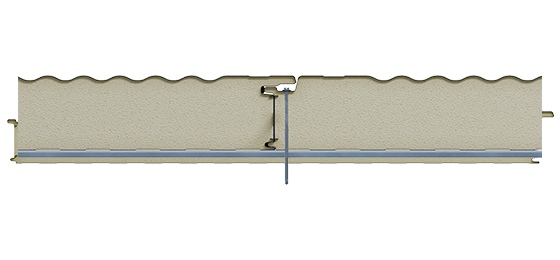

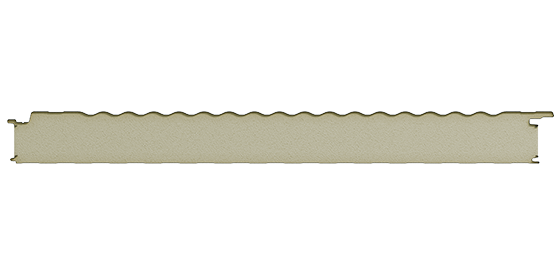

W SINUS - UK WALL PANEL
- Has the best thermal insulation values.
- Fast and problem-free assembly saves time and labor.
- The colorful surface eliminates the need for additional coatings like plaster and paint.
- Color options available in the RAL catalogue.
- Surface paint options available according to application (Polyester, PvdF, Plastisol, PVC).
- Applicable both laterally and vertically.
- The fastening elements being concealed provides visual advantage on walls.
Product Information
Production Plant
UK
Favourable Width
1000 mm
Minimum Length
3 Meters
Maximum Length
Depends on Transport Conditions
Density (EN 1602)
SmartCore: 41(±2) kg/m3 – PIR: 40(±2) kg/m3
Thickness
40-50-60-100-150
Thermal Conductivity (EN 13165)
SmartCore: 0,018–0,019 W/m·K
Dimensional Stability (EN 13165)
Level DS (TH) 11
Reaction to Fire (EN 13501)
SmartCore: B-s2,d0 – PIR: B-s2,d0
Water Absorption
By Volume %2 (168 hours)
Closed Cell Percentage (EN 14509)
95%
Vapour Diffusion Resistance (EN 12086)
30-100
Heat Resistance
-200 /+110 ºC
