WD - UK WALL PANEL
- High-performance insulation filler

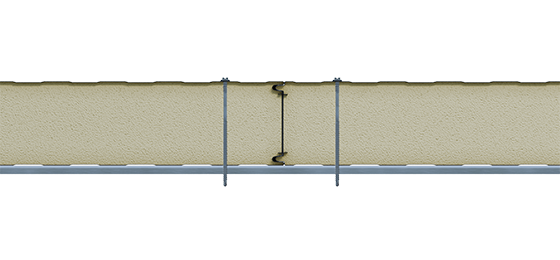

- Suitable for use on facades thanks to its system that conceals the facade panel connection element.
- Provides ideal thermal insulation with a thinner panel thickness compared to alternative insulation materials.
- Depending on the profile type, there is a choice of factory-formed corner panels that can be bent vertically or at an angle, and a wide variety of cover profiles.
- The use of n-Pentane gas in the foaming of polyurethane ensures no harm to the environment.
- Thanks to its coloured surface, no additional coatings such as plaster or paint are required; colours can be selected from the RAL catalogue.
- Surface paint options (Polyester, PvdF, Plastisol, PVC) are available to suit the intended location.
Product Information
Production Plant
UK
Favourable Width
1000 mm
Minimum Length
3 Meters
Maximum Length
Depends on Transport Conditions
Density (EN 1602)
SmartCore: 41(±2) kg/m3 – PIR: 40(±2) kg/m3
Thickness
50-60-100-150
Thermal Conductivity (EN 13165)
SmartCore: 0,018-0,019 W/m K
Dimensional Stability (EN 13165)
Level DS (TH) 11
Reaction to Fire (EN 13501)
SmartCore: B-s2,d0 – PIR: B-s2,d0
Water Absorption
By Volume %2 (168 hours)
Closed Cell Percentage (EN 14509)
95%
Vapour Diffusion Resistance (EN 12086)
30-100
Heat Resistance
-200 /+110 ºC
